DAV-100 Din-Rail Digital Meter
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
General Description
DAV.100 Din-rail digital meter can measure and display Ac voltage, Ac curent at the same time.We will provide a precision smallcurrent transformer for the meter
Technical Parameter
| Accuracy | 1%+2 wordsa |
| Display Mode | 0. 32-inch Led ( Ac voltage with red led and Ac current with green led)a |
| Range |
AC voltage: AC160-275V (You should select the one type of meter in your ordera AC current: Ac 0-100A (cT) (measured current is less than 10A,display 0-9.99,The resolution is 0.0lA.Display 10.0-60.0A when larger than 10AResolution is 0.1A, decimal point is automatically converteda |
| Speed | 2 times per second |
| Size | 90x59x35mm |
| Installation Width | 2P (sum of width of two D247/C45) |
| Installation | Din-Rail (din-rail for air switch, there will not-provide rail) |
Use Conditions
| Mechanical Life Expectancy | 3 x 10s 0peration |
| Electrical Life Expectancy | lx 10* operations |
| Operating Temperature | -15c to +55°c |
| Storage Temperature | -25'c to +70°c |
| Humidity (Non-Condensing) | 95%(Rh |
| Max. operating Altitude | 2000m |
| Degree of Protection | lP-20 for Terminals , lp-30 for Housing |

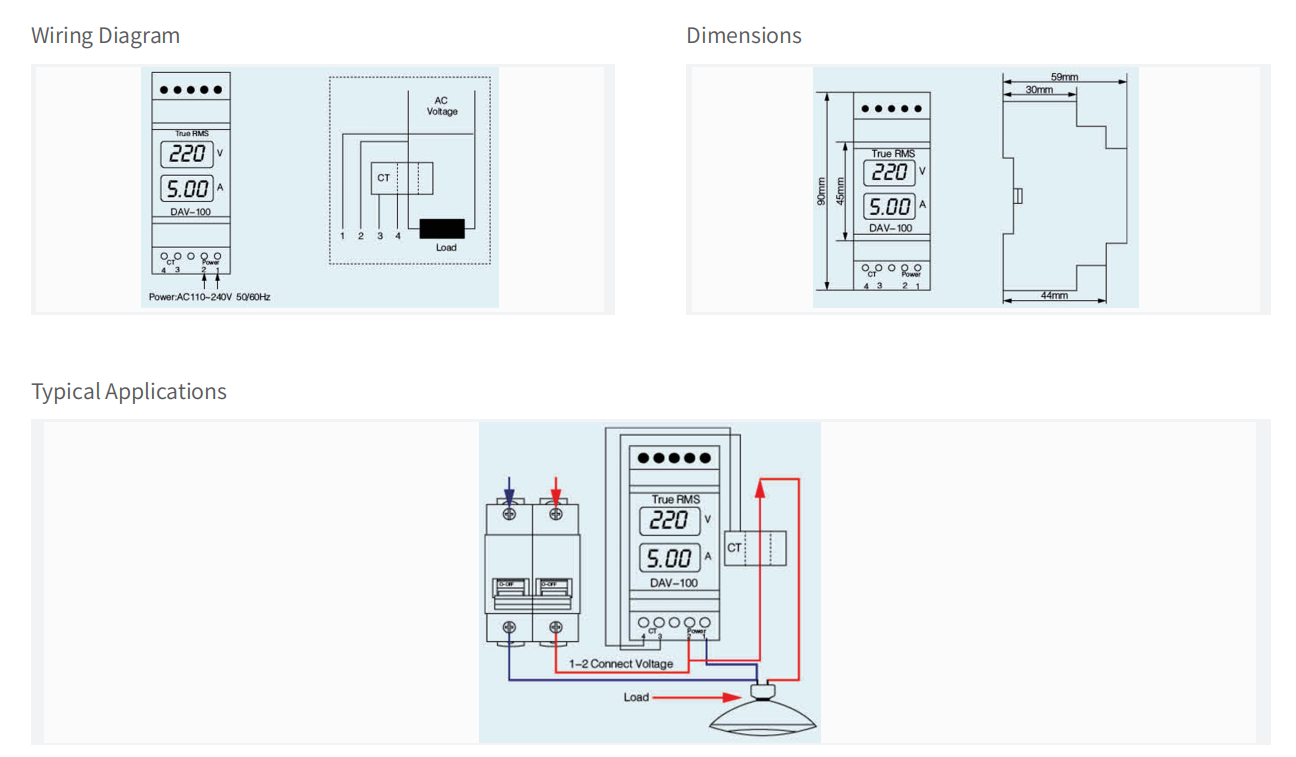

Diagram
