AVR-63TF THREE PHASE CURRENT & VOLTAGE PROTECTION RELAY
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
General Description
AVR Current & voltage protection relay designed to protect devices with sensitive operating voltage & current values from errors that may arise from mains voltage and overload.
Exit the overload fault
After eliminating the load over-current fault, Press twice the on/of key to manual reset or cut off thepower supply.
INote 1: Manual reset is to avoid secondary damage to the system by automatically resetting the system without excluding over-current or short circuit.
Specifications
| Type | Range | |
| Current Rang | AVR-63T/F | 1-63AAC |
| High Voltage | 230-300VAC+Off | |
| Low Voltage | 110-210VAC+Off | |
| Reset | Auto Reset (Voltage Failure) | |
| Indicator | Digital | |
| Operating Voltage | Voltage range | 110-420 VAC(L-N) |
| Frequency | 50/60Hz | |
| Temperature | -20-+55°C°C35mm | |
| Mounting | 35mm DlN-Rail | |
| Weight | <90gr. |

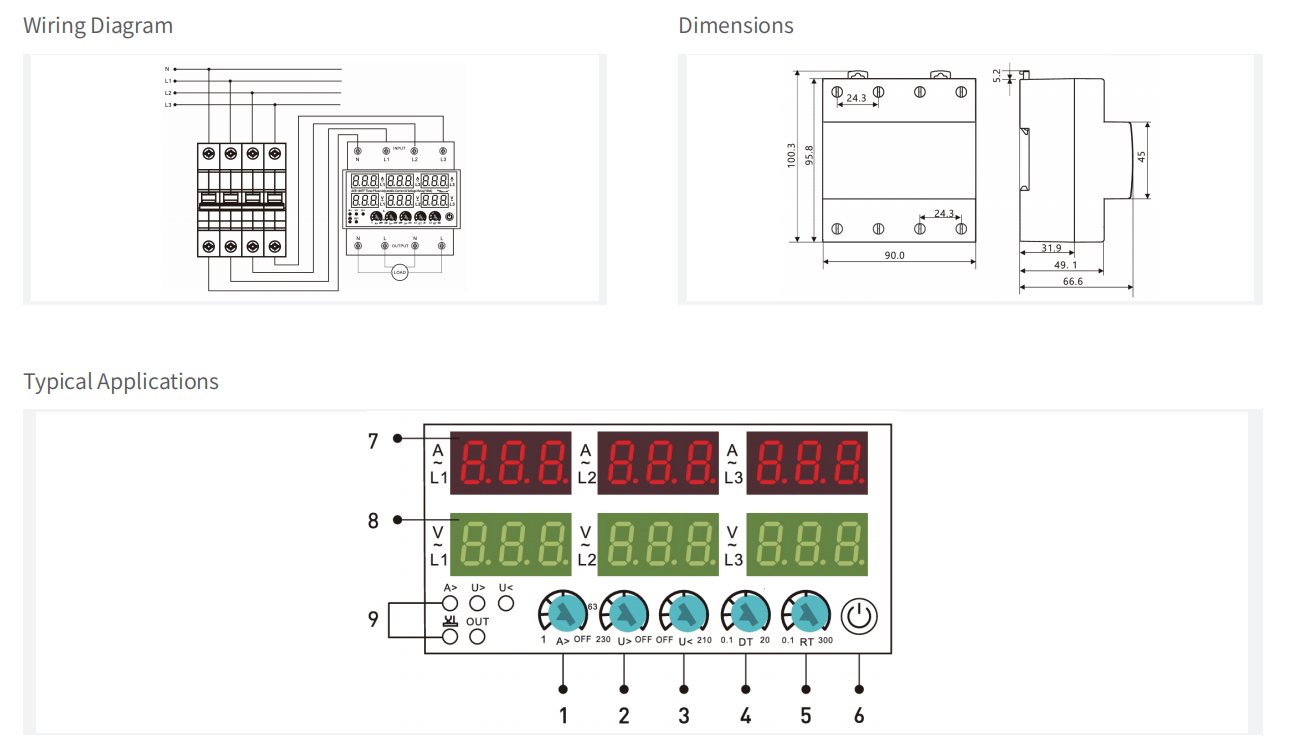

Diagram
