AVR-100 THREE PHASE CURRENT & VOLTAGE PROTECTION RELAY
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
General Description
AVK-63Current & voltage protection relay is designed to protect devices with sensitive operating voltage & current values from errors that may arise from mains voltage and overload.
Exit the overload fault
After eliminating the load over-current fault, Press twice the on/off key to manual reset or cut off the power supply. lNote 1: Manual reset is to avoid secondary damage to the system by automatically reseting the system without excluding over-current or short circuit.
Specifications
| Operating Voltage(Un). | 3x380+Neutral |
| Operating Frequency | 50/60Hz. |
| Operating Power | <6VA |
| Operating Temperature | -20°C.+55°C |
| Over-CurrentlA>) | 1-63A(63),1-80A[80A),1-100A(100A) |
| High Voltage(u>) | 230-300V+Off |
| Low Voltage{U<). | 110-210V+Off |
| Low Voltage Fuse. | 115V(Fixed) |
| Delay Time | 0.1-20sec. |
| Reset time | 0.1-300sec. |
| Display | 3x6 digit LED display5 LEDSor 4LEDS(AVK-63T) |
| Measurement Precision | 士%1 |
| Connection Type | Terminalcommection |
| Weight | Max.420gr |
| Mounting | Vertical assembled in the panel or assembled on the din rail. |
| Operating Altitude. | <2000meter |

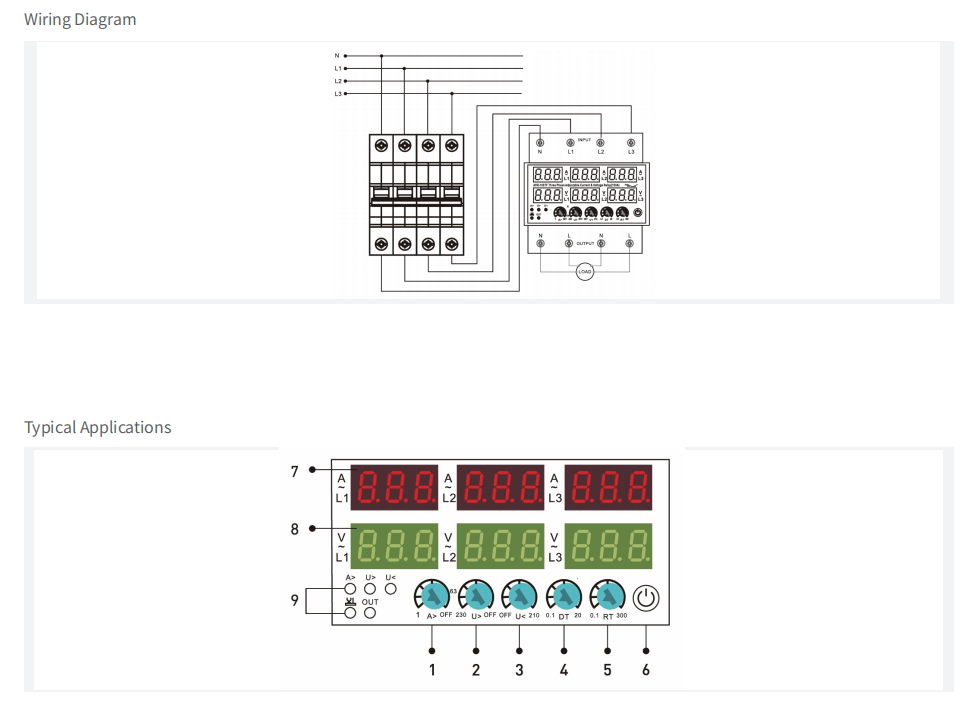

Diagram
