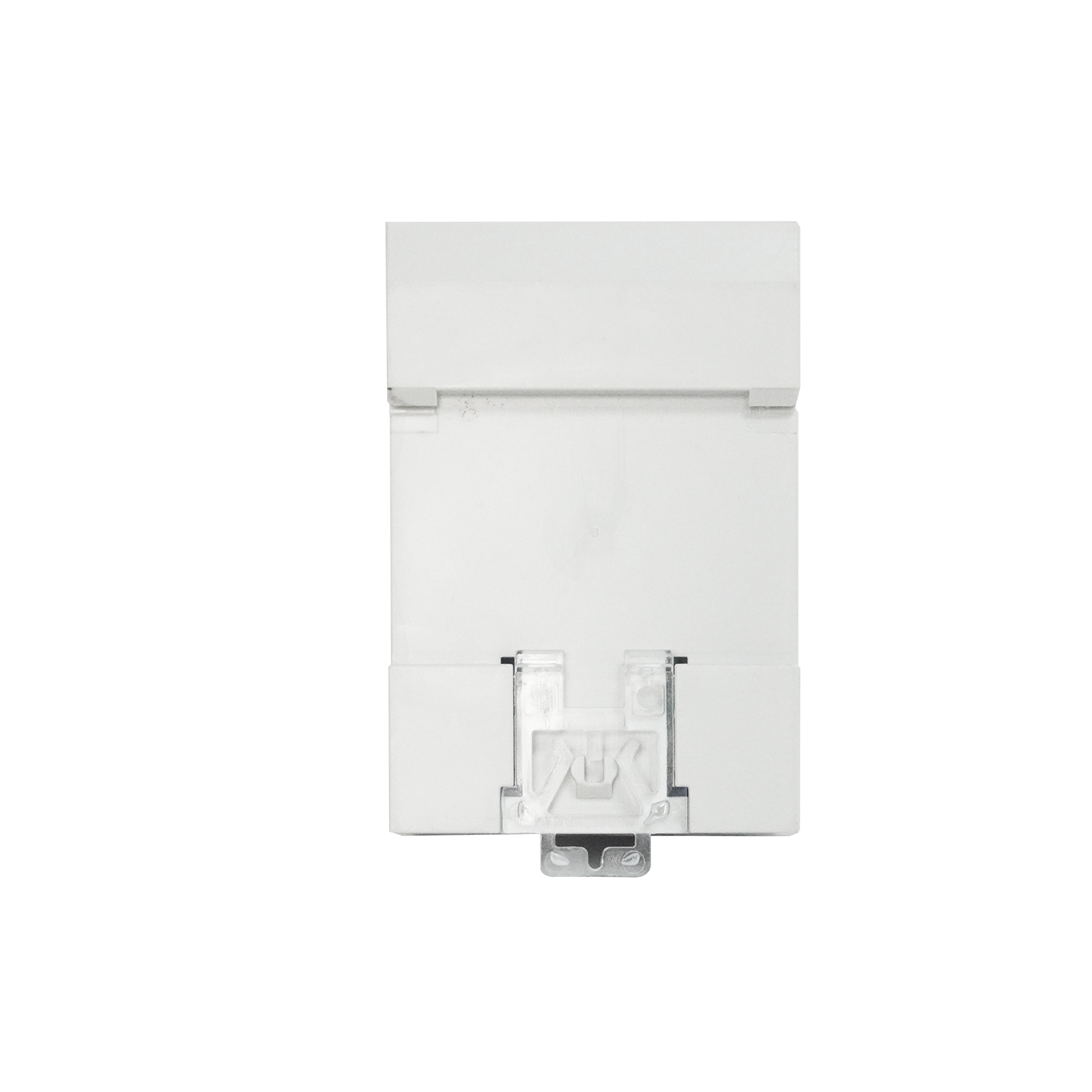

D52-2042 Din-rail AC voltage and current meter
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
General Description
D52-2042 Din-rail AC voltage and current metercan dispiay AC voltage and current at the sametime.lf the measuring current is lower than99.9A,an AC transformer is not needed. You canget the AC current only making the wire acrossthe hole which in the right side of the meter.lf the measuring current is higher than 99.9A,you should connect meter with a currenttransformer.
Specifications
| Accuracy | 1% |
| Display mode | 0.5inch LED digital tube |
| Range |
Ac voltage:80-300V,200-450V(Users can choose a voltage measurement range when ordering according to their needs) AC current:Ac0-99.9A(when measure current lower than 10A,the accuracyis 0.01A,when measure current between 10.0 and 99.9A,the accuracy is 0.1,the accuracy auto-change) |
| Speed | 2 per second |
| Size | 54*80*64mm |
| Installation | Din-rail |

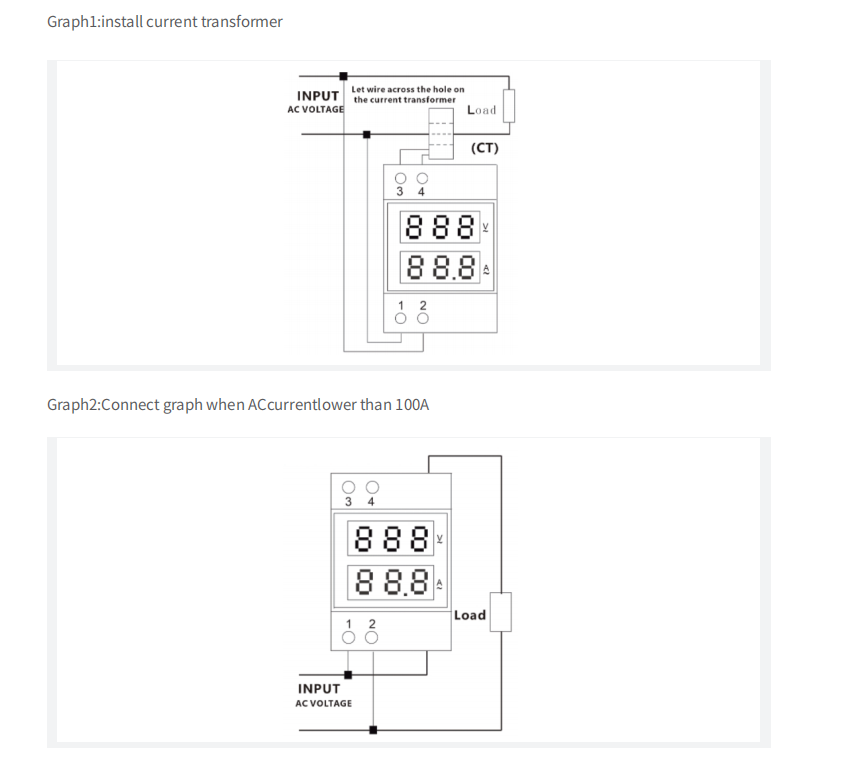

Diagram
