AVK-63S CURRENT & VOLTAGE PROTECTION RELAY WITH ENERGY ANALYZER
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
General Description
AVK-63Current & voltage protection relay is designed to protect devices with sensitive operating voltage & current values from errors that may arise from mains voltage and overload.
Exit the Over-curent Error state
After eliminating the load over-current fault, Press twice the on/off key to manual reset or cut off the power supply. INote_1: Manual reset is to avoid secondary damage to the system by automatically reseting the system without excluding over-current or short circuit.
Specifications
| Ratec Current | 40A or 63A |
| Rated Voltage | 220V AC |
| Frequency | 50Hz.-60HZ. |
| Protection Range | 0V-450V AC |
| Operating Temp | -20°℃C-+55°C |
| Operating Power | <4VA |
| Operating Altitude | <20000m |
| Display | 2x3 digit LED display4 LEDS |
| Weight | 63A)<170gr |
| Over-Current Setting | 63A(1-63A);40(1-40A) |
| High voltage Setting | 230V-300V+Off |
| High Voltage Error waiting | 0-10sec. |
| Low Voltage Setting | 120V-210V+Off |
| Low Voltage Error Waiting | 0-10sec. |
| Power On Delay Time | 2-300sec. |
| Reset Waiting | 2-600sec. |

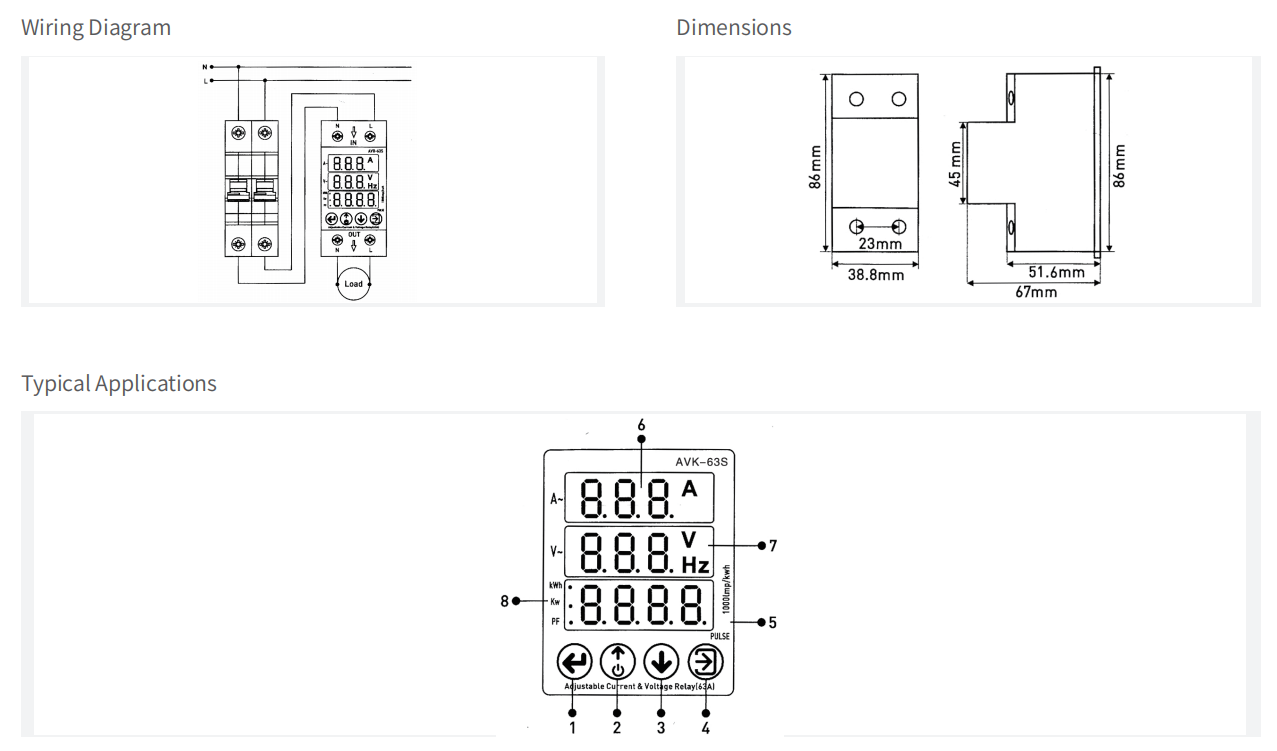

Diagram
